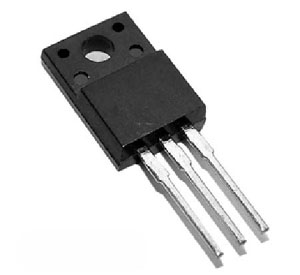

2SC4977 Transistor
2SC4977-JTX

2SC4977 Transistor

2,22 €
Only 5 in stock
SKU: 2SC4977-JTX
2SC4977 Transistor
  • Category: NPN Transistor
  • MHz: <1 MHz
  • Amps: 7A
  • Volts: 400V
    •  Back to: Transistor

    2SC4977 Transistor

    Type Designator: 2SC4977
       Material of Transistor: Si
       Polarity: NPN
       Maximum Collector Power Dissipation (Pc): 40 W
       Maximum Collector-Base Voltage |Vcb|: 450 V
       Maximum Collector-Emitter Voltage |Vce|: 400 V
       Maximum Emitter-Base Voltage |Veb|: 8 V
       Maximum Collector Current |Ic max|: 7 A
       Max. Operating Junction Temperature (Tj): 150 °C
       Forward Current Transfer Ratio (hFE), MIN: 10
       Noise Figure, dB: -
       Package: TO220F
