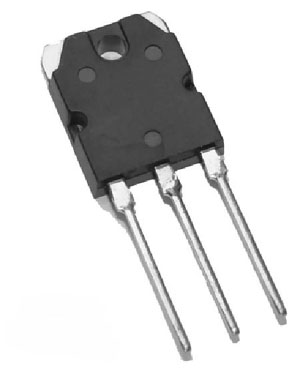

2SC5198 Transistor

2SC5198 Transistor

Type Designator: 2SC5198
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 100 W
   Maximum Collector-Base Voltage |Vcb|: 140 V
   Maximum Collector-Emitter Voltage |Vce|: 140 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 30 MHz
   Collector Capacitance (Cc): 170 pF
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -
   Package: TO3PN

Power Amplifier Applications

• High breakdown voltage: VCEO = 140 V (min)
• Complementary to 2SA1941
• Suitable for use in 70-W high fidelity audio amplifier’s output stage
