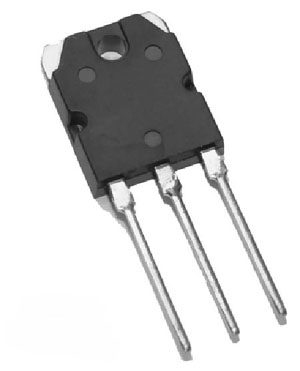

2SC5242 Transistor
2SC5242-XAR

2SC5242 Transistor

2,07 €
Only 5 in stock
SKU: 2SC5242-XAR
2SC5242 Transistor
  • High Collector breakdown voltage: VCEO = 230 V (min)
  • Complementary to 2SA1962
  • Suitable fro use in 80-W high fidelity audio amplifier’s output stage
    •  Back to: Transistor

    2SC5242 Transistor

    Type Designator: 2SC5242
       Material of Transistor: Si
       Polarity: NPN
       Maximum Collector Power Dissipation (Pc): 130 W
       Maximum Collector-Base Voltage |Vcb|: 230 V
       Maximum Collector-Emitter Voltage |Vce|: 230 V
       Maximum Emitter-Base Voltage |Veb|: 5 V
       Maximum Collector Current |Ic max|: 15 A
       Max. Operating Junction Temperature (Tj): 150 °C
       Transition Frequency (ft): 30 MHz
       Collector Capacitance (Cc): 200 pF
       Forward Current Transfer Ratio (hFE), MIN: 55
       Noise Figure, dB: -
       Package: TO3PN

    Power Amplifier Applications

    • High Collector breakdown voltage: VCEO = 230 V (min)
    • Complementary to 2SA1962
    • Suitable fro use in 80-W high fidelity audio amplifier’s output stage
