2SC5383 Transistor
Type Designator: 2SC5383
SMD Transistor Code: LF
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.125 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 2.5 pF
Forward Current Transfer Ratio (hFE), MIN: 150
Noise Figure, dB: -

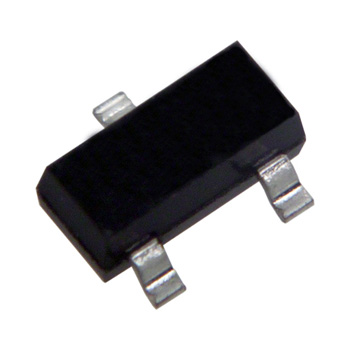

Package: USM
DESCRIPTION
2SC5383 is a ultra super mini package resin sealed silicon NPN epitaxial transistor, It is designed for low frequency voltage application.
FEATURE
●Small collector to emitter saturation voltage. VCE(sat)=0.3V max（@Ic=100mA,IB=10mA）
●Excellent linearity of DC forward gain.
●Ultra super mini package for easy mounting
APPLICATION
For Hybrid IC,small type machine low frequency voltage
Amplify application
