2SD1128 Transistor

2SD1128 Transistor

Type Designator: 2SD1128
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 30 W
   Maximum Collector-Base Voltage |Vcb|: 150 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 11 MHz
   Collector Capacitance (Cc): 54 pF
   Forward Current Transfer Ratio (hFE), MIN: 5000
   Noise Figure, dB: -

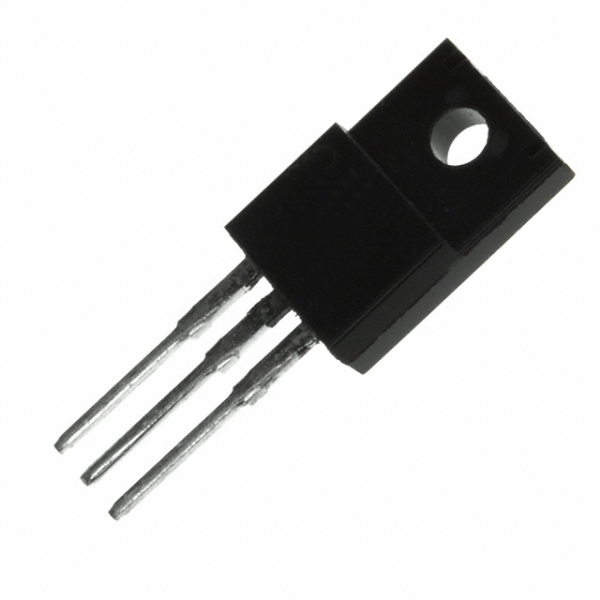

   Package: TO220

• High D.C. current gain
• Excellent linearity in h
• FE
• Excellent safe operating area
• High reliability

• Color & B/W TV power supply
• Active power filter
• Industrial use power supply (series regulator)
• General purpose power amplifiers
