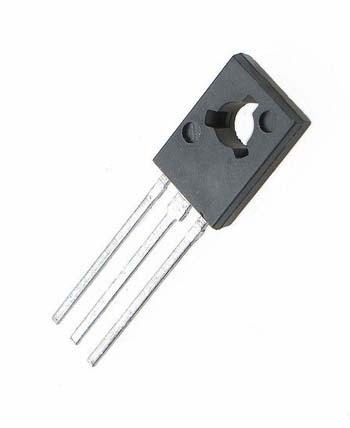

2SD1508 Transistor

2SD1508 Transistor

Type Designator: 2SD1508
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 10 V
   Maximum Collector Current |Ic max|: 1.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 6000
   Noise Figure, dB: -
   Package: ISO126

Pulse Motor Drive, Hammer Drive Applications Switching Applications Power Amplifier Applications
