2SD716 Transistor

2SD716 Power Transistors

Type Designator: 2SD716
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 60 W
   Maximum Collector-Base Voltage |Vcb|: 100 V
   Maximum Collector-Emitter Voltage |Vce|: 100 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 6 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 6 MHz
   Collector Capacitance (Cc): 100 pF
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -

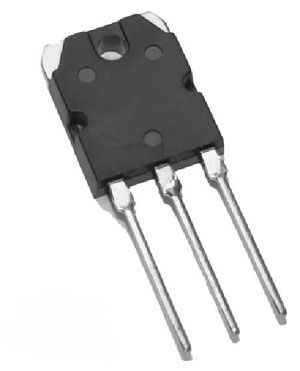

   Package: TO247

Features

• Power amplifier applications
• Complementary to 2SB686
• Recommended for 30~30W high-fidelity frequency amplifier output stage

Datasheet: 2SD716.pdf
