2SD756A Transistor

2SD756A Tranistor

Type Designator: 2SD756A
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.75 W
   Maximum Collector-Base Voltage |Vcb|: 140 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 350 MHz
   Collector Capacitance (Cc): 1.6 pF
   Forward Current Transfer Ratio (hFE), MIN: 250
   Noise Figure, dB: -

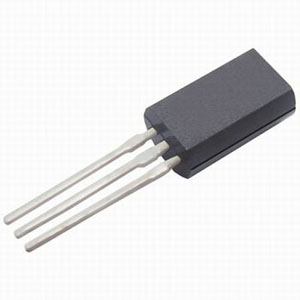

   Package: TO92

• Low frequency high voltage amplifier
• Complementary pair with 2SB715, 2SB716 and 2SB716A
• D Hfe 250 to 500
