2SD845 Transistor
2SD845-XAR

2SD845 Transistor

5,49 €
Only 4 in stock
SKU: 2SD845-XAR
2SD845 Transistors

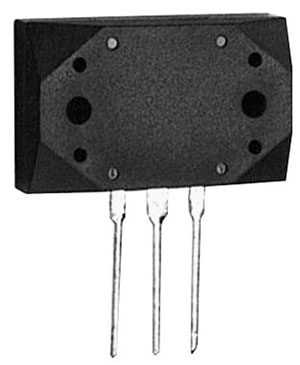

  • With MT-200 package
  • Complement to type 2SB755
  • High transition frequency
  • High breakdown voltage
  • VCEO=150V(min)
    •  Back to: Transistor

    2SD845 Transistors

    DESCRIPTION

    • With MT-200 package
    • Complement to type 2SB755
    • High transition frequency
    • High breakdown voltage :VCEO=150V(min)

    APPLICATIONS

    • For power amplifier applications

    Absolute maximum ratings (Ta=25°C)
    SYMBOL PARAMETER CONDITIONS VALUE UNIT
    VCBO Collector-base voltage Open emitter 150 V
    VCEO Collector-emitter voltage Open base 150 V
    VEBO Emitter-base voltage Open collector 5 V
    IC Collector current 12 A
    IB Base current 1.2 A
    PC Collector power dissipation TC=25ı 120 W
    Tj Junction temperature 150 ı
    Tstg Storage temperature -55~150 ı
