Sold BC177 Transistor
BC177-XAR

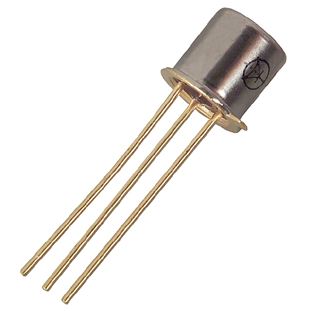

BC177 Transistor

2,16 €
Out of Stock
SKU: BC177-XAR
BC177 Transistor
LOW NOISE GENERAL PURPOSE AUDIO AMPLIFIERS
Notify Me
 Back to: Transistor

BC177 Transistor

Type Designator: BC177
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.3 W
   Maximum Collector-Base Voltage |Vcb|: 45 V
   Maximum Collector-Emitter Voltage |Vce|: 45 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Transition Frequency (ft): 130 MHz
   Collector Capacitance (Cc): 7 pF
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -
   Package: TO18

LOW NOISE GENERAL PURPOSE AUDIO AMPLIFIERS

DESCRIPTION
The BC177 is a silicon planar epitaxial PNP transistors in TO-18 metal case. It is suitable for use in driver stages, low noise input stages and signal processing circuits of television reveivers.

The NPN complement is BC107
