BD245C Transistor

BD245C TRANSISTOR

Type Designator: BD245C
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 80 W
   Maximum Collector-Base Voltage |Vcb|: 115 V
   Maximum Collector-Emitter Voltage |Vce|: 100 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 15 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 3 MHz
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -

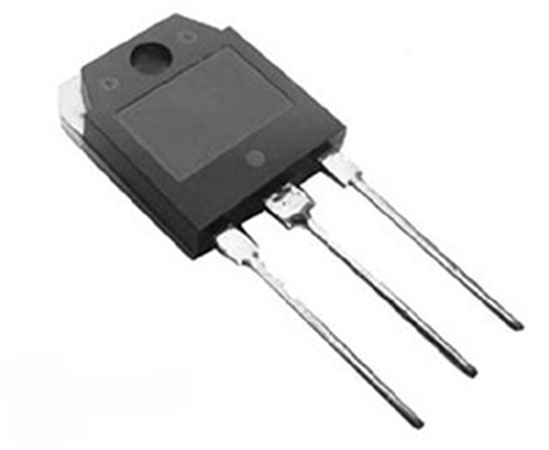

   Package: TO218

Sostituisce: 2SC2485 , 2SC793 , 2SD896

Descrizione

• Designed for Complementary Use with the
• BD246 Series
• 80 W at 25°C Case Temperature
• 10 A Continuous Collector Current
• 15 A Peak Collector Current
• Customer-Specified Selections Available
