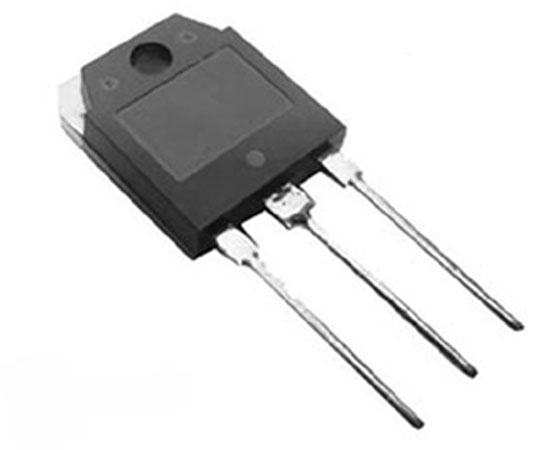

BD250C Transistor
BD250C-XAR

BD250C Transistor

2,01 €
Only 13 in stock
SKU: BD250C-XAR
BD250C Transistor
Sostituisce: 2SB686 , 2SB754 , BD746
  • Designed for Complementary Use with the BD249 Series
  • 125 W at 25°C Case Temperature
  • 25 A Continuous Collector Current
  • 40 A Peak Collector Current
    •  Back to: Transistor

    BD250C Transistor

    Type Designator: BD250C
       Material of Transistor: Si
       Polarity: PNP
       Maximum Collector Power Dissipation (Pc): 125 W
       Maximum Collector-Base Voltage |Vcb|: 115 V
       Maximum Collector-Emitter Voltage |Vce|: 100 V
       Maximum Emitter-Base Voltage |Veb|: 5 V
       Maximum Collector Current |Ic max|: 40 A
       Max. Operating Junction Temperature (Tj): 150 °C
       Transition Frequency (ft): 3 MHz
       Forward Current Transfer Ratio (hFE), MIN: 30
       Noise Figure, dB: -
       Package: TO218

    Sostituisce: 2SB686 , 2SB754 , BD746

    • Designed for Complementary Use with the
    • BD249 Series
    • 125 W at 25°C Case Temperature
    • 25 A Continuous Collector Current
    • 40 A Peak Collector Current
