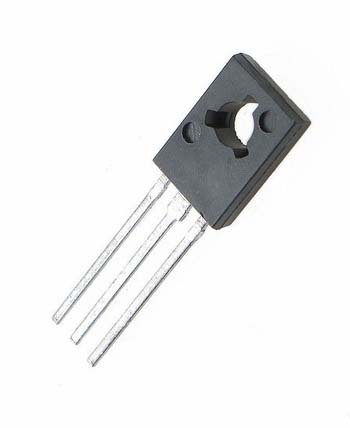

BD678 Transistor

BD678 Transistor

Type Designator: BD678
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 40 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 4 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 1 MHz
   Forward Current Transfer Ratio (hFE), MIN: 750
   Noise Figure, dB: -
   Package: TO126

Sostituisce: BD676 , BD678A , MJE700 , 2SA1194
