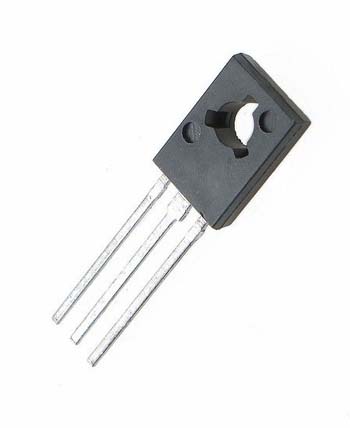

BD683 Transistor
0,43 €
Only 1 in stock
SKU: BD683
BD683 Transistor
The BD683 is NPN eptaxial-base transistors in monolithic Darlington circuit for audio and video applications.
PNP complement is BD684
The BD683 is NPN eptaxial-base transistors in monolithic Darlington circuit for audio and video applications.
PNP complement is BD684
BD683 Transistor
Type Designator: BD683
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7 MHz
Forward Current Transfer Ratio (hFE), MIN: 750
Noise Figure, dB: -
Package: TO126
The BD683 is NPN eptaxial-base transistors in monolithic Darlington circuit for audio and video applications.
They are mounted in Jedec TO-126 plastic package.
PNP complement is BD684
