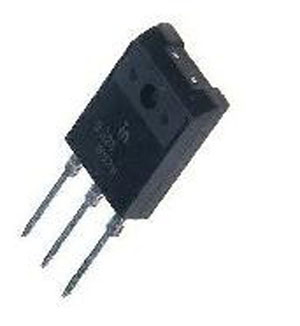

BU2520AF Transistor

BU2520AF Transistor

 Type Designator: BU2520AF
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 45 W
   Maximum Collector-Base Voltage |Vcb|: 1500 V
   Maximum Collector-Emitter Voltage |Vce|: 800 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Collector Capacitance (Cc): 115 pF
   Forward Current Transfer Ratio (hFE), MIN: 5
   Noise Figure, dB: -
   Package: SOT199

Sostituisce: 2SC3688 , 2SC5027A , KSD5703
