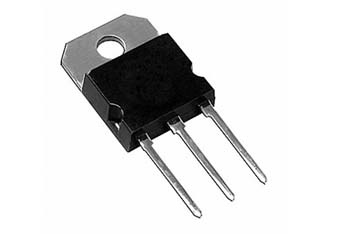

BU508D Transistor

BU508D Transistor

Type Designator: BU508D
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 125 W
   Maximum Collector-Base Voltage |Vcb|: 1500 V
   Maximum Collector-Emitter Voltage |Vce|: 700 V
   Maximum Collector Current |Ic max|: 8 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 3 MHz
   Collector Capacitance (Cc): 125 pF
   Forward Current Transfer Ratio (hFE), MIN: 5
   Noise Figure, dB: -
   Package: ISOWATT218
