BUT11AF Transistor

BUT11AF Transistor

 Type Designator: BUT11AF
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 40 W
   Maximum Collector-Base Voltage |Vcb|: 1000 V
   Maximum Collector-Emitter Voltage |Vce|: 450 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -

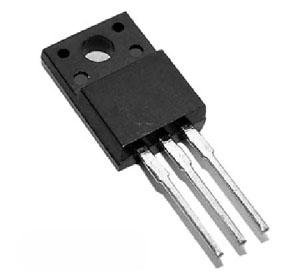

   Package: TO220F

Sostituisce: 2SC2832 , 2SC3353 , 2SC3972
