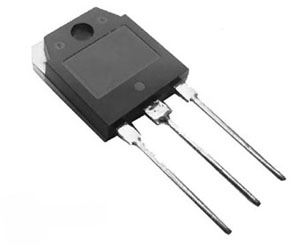

BUV70 Transistor
BUV70

BUV70 Transistor

5,54 €
Only 1 in stock
SKU: BUV70
BUV70 Transistor
For switching regulator applications
 Back to: Transistor

BUV70 Transistor

Type Designator: BUV70
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 140 W
   Maximum Collector-Base Voltage |Vcb|: 1300 V
   Maximum Collector-Emitter Voltage |Vce|: 600 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 9 MHz
   Forward Current Transfer Ratio (hFE), MIN: 5
   Noise Figure, dB: -
   Package: TOP3

DESCRIPTION
  • With TO-3PN package
  • High breakdown voltage
  • Fast switching speed
  • Wide area of safe operation
APPLICATIONS
  • For switching regulator applications
