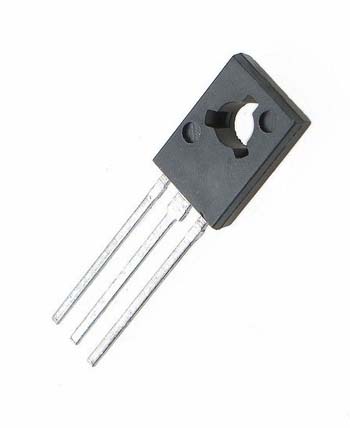

KTC2814 Transistor

KTC2814 Transistor

 Type Designator: KTC2814
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 10 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 2 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 100 MHz
   Collector Capacitance (Cc): 30 pF
   Forward Current Transfer Ratio (hFE), MIN: 70
   Noise Figure, dB: -
   Package: TO126

POWER AMPLIFIER APPLICATION.
POWER SWITCHING APPLICATION.
FEATURES
Low Collector Saturation Voltage
: VCE(sat)=0.5V(Max.) (IC=1A)
High Speed Switching Time : tstg=1.0 S(Typ.)
Complementary to KTA1715.
