KTC3875S Transistor
GENERAL PURPOSE APPLICATION.
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.15
Maximum collector-base voltage |Ucb|, V: 60
Maximum collector-emitter voltage |Uce|, V: 50
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.15
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 80
Collector capacitance (Cc), pF: 2
Forward current transfer ratio (hFE), min: 70
Noise Figure, dB: -

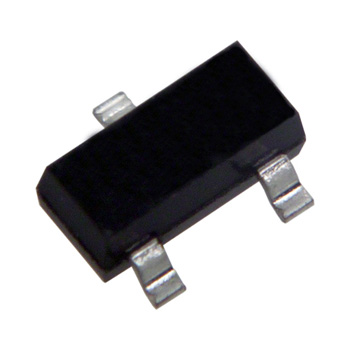

Package of KTC3875S transistor: SOT23
Complementary to KTA1504S.
