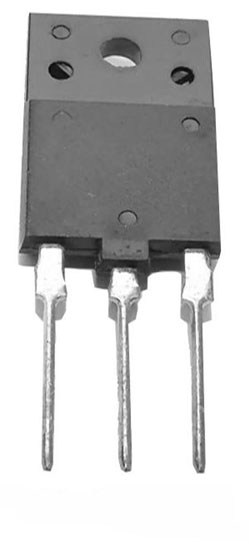

TRANSISTOR, NPN ISOWATT-218
Polarità transistor:NPN
Collector-to-Emitter Breakdown Voltage:700V
Typ Gain Bandwidth ft:7MHz
N. of Pins:3
Av Current Ic:8A
Tipo corpo:ISOWATT-218
Current Ic @ Vce Sat:8A
Corrente, Ic hFE:4.5A
Full Power Rating Temperature:25°C
Isolation voltage:1500 V
Lead Spacing:5.45mm
Max Current Ic:15mA
Max Current Ic Continuous a:8A
Max Power Dissipation Ptot:50 W
Max Voltage Vce Sat:1V
Min Hfe:4
N. of Transistors:1
Tipo transistor:Commutazione di potenza ad alta tensione
Tensione, Vcbo:1500 V
Voltage Vces:1500 V
