TIP127 TRANSISTORS
Type Designator: TIP127
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 1000
Noise Figure, dB: -

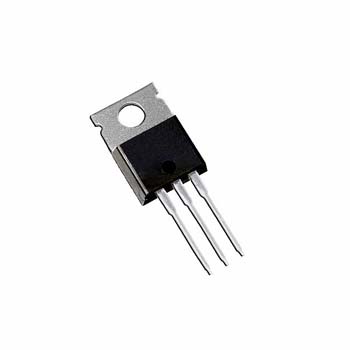

Package: TO220
DESCRIPTION
The TIP120, TIP121 and TIP122 are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration Jedec TO-220 plastic package, intented for use in power linear and switching applications.
The complementary PNP types are TIP125, TIP126 and TIP127.
