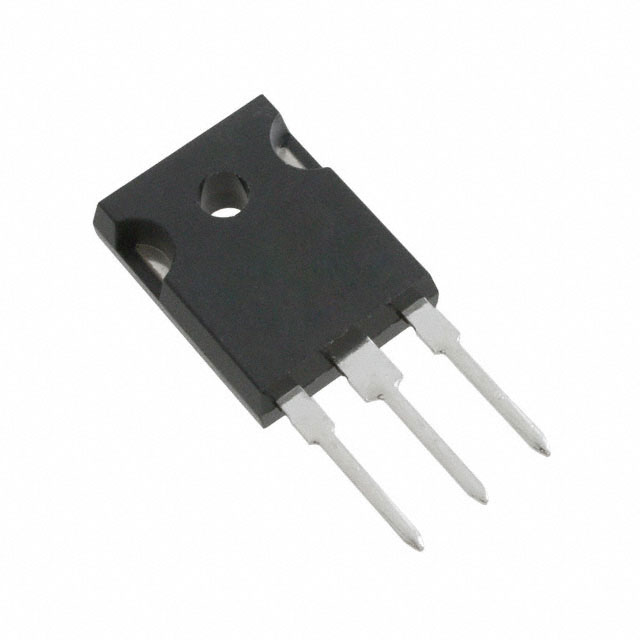

TIP147 Transistor
Type Designator: TIP147
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 125 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Forward Current Transfer Ratio (hFE), MIN: 500
Noise Figure, dB: -
Package: TO218
Sostituisce: TIP145 , TIP146
