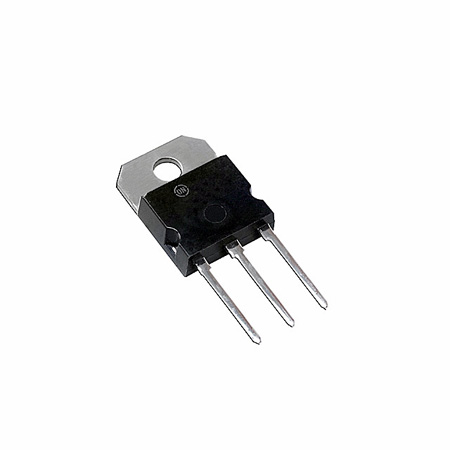

TIP35C Transistor
1,40 €
Only 10 in stock
SKU: TIP35C
TIP35C Transistor
The TIP35C is a silicon Epitaxial-Base NPN transistor mounted in TO-218 plastic package
The TIP35C is a silicon Epitaxial-Base NPN transistor mounted in TO-218 plastic package
TIP35C Transistor
Type Designator: TIP35C
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 25 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Noise Figure, dB: -
Package: TOP3
DESCRIPTION
The TIP35C is a silicon Epitaxial-Base NPN transistor mounted in TO-218 plastic package. It is intented for use in power amplifier and switching applications.
The complementary PNP type is TIP36C.
Also TIP36B is a PNP type.
