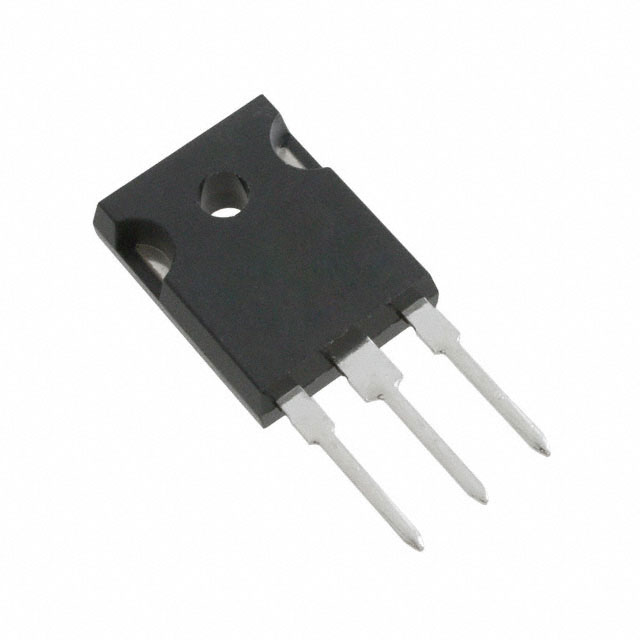

TIP36CW Transistor

TIP36CW TRANSISTOR

• TRANSISTOR, PNP, TO-247
• Polarità transistor:PNP
• Collector-to-Emitter Breakdown Voltage:100V
• Typ Gain Bandwidth ft:3MHZ
• Power Dissipation Pd:125W
• DC Collector Current:25A
• DC Current Gain hFE:25
• Operating Temperature Range:Da -65°C a +150°C
• Transistor Case Style:TO-3P
• N. of Pins:3
• SVHC:No SVHC
• Tipo corpo:TO-247
• Corrente, Ic hFE:15A
• Full Power Rating Temperature:25°C
• Max Current Ic:25A
• Max Current Ic Continuous a:25A
• Max Power Dissipation Ptot:125W
• Max Voltage Vce Sat:-1.8V
• Min Gain Bandwidth ft:3MHZ
• Min Hfe:10
• N. of Transistors:1
• Dissipazione di potenza:125W
• Tipo terminazione::Foro passante
• Tipo transistor:Bipolare
• Tensione, Vcbo:100V
