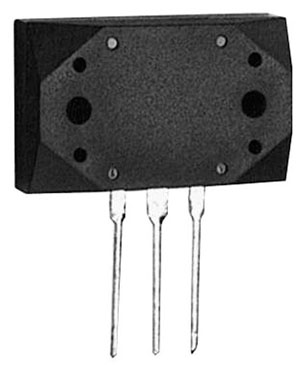

2SA1215 Transistor

2SA1215 Transistor

Application: Audio and General Purpose

Type Designator: 2SA1215
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 150 W
   Maximum Collector-Base Voltage |Vcb|: 160 V
   Maximum Collector-Emitter Voltage |Vce|: 160 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 15 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 50 MHz
   Collector Capacitance (Cc): 400 pF
   Forward Current Transfer Ratio (hFE), MIN: 50
   Noise Figure, dB: -
   Package: MT200
