2SA1263N Transistor

SA1263 Transistor

Type Designator: 2SA1263
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 60 W
   Maximum Collector-Base Voltage |Vcb|: 80 V
   Maximum Collector-Emitter Voltage |Vce|: 80 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 6 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 30 MHz
   Collector Capacitance (Cc): 290 pF
   Forward Current Transfer Ratio (hFE), MIN: 55
   Noise Figure, dB: -

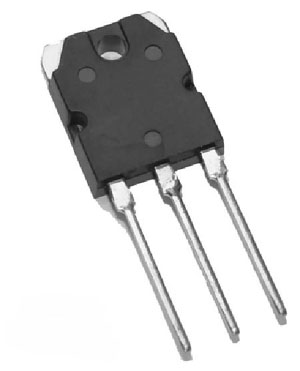

   Package: TO218

Complementary to 2SC3180
