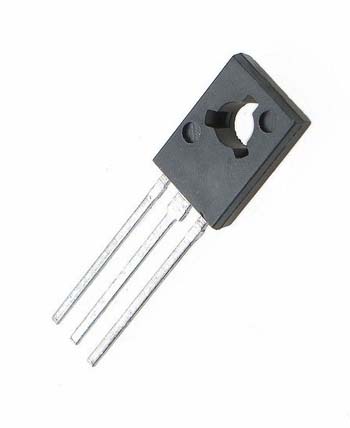

2SC2314 Transistor

2SC2314 Transistor

Type Designator: 2SC2314
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 5 W
   Maximum Collector-Base Voltage |Vcb|: 75 V
   Maximum Collector-Emitter Voltage |Vce|: 45 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 180 MHz
   Collector Capacitance (Cc): 25 pF
   Forward Current Transfer Ratio (hFE), MIN: 60
   Noise Figure, dB: -
   Package: TO126

27MHz CB Transceiver Driver Applications
