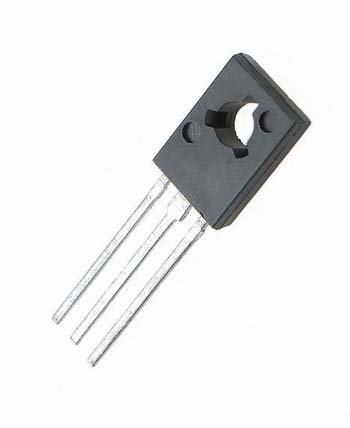

2SC3953 Transistor
2SC3953-XAR

2SC3953 Transistor

0,65 €
In Stock
SKU: 2SC3953-XAR
2SC3953 Transistor
High-Definition CRT Display Video Output Applications
 Back to: Transistor

2SC3953 Transistor

 Type Designator: 2SC3953
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 8 W
   Maximum Collector-Base Voltage |Vcb|: 120 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Emitter-Base Voltage |Veb|: 3 V
   Maximum Collector Current |Ic max|: 0.2 A
   Max. Operating Junction Temperature (Tj): 125 °C
   Transition Frequency (ft): 400 MHz
   Collector Capacitance (Cc): 2.1 pF
   Forward Current Transfer Ratio (hFE), MIN: 40
   Noise Figure, dB: -
   Package: TO126

High-Definition CRT Display Video Output Applications

Applications

  • High-definition CRT display video output, wide-band amplifier.

Features

  • High fT : fT=400MHz.
  • High breakdown voltage : VCEO=120Vmin.
  • Small reverse transfer capacitance and excellent HF response : Cre=1.7pF/NPN, 2.2pF/PNP.
  • Complementary PNP and NPN types.
  • Adoption of FBET process.
  • Micaless type : TO-126 plastic package.
