FIBARO Heat Controller
66,00 €
In Stock
SKU: FGT-001 ZW5 EU-JDK

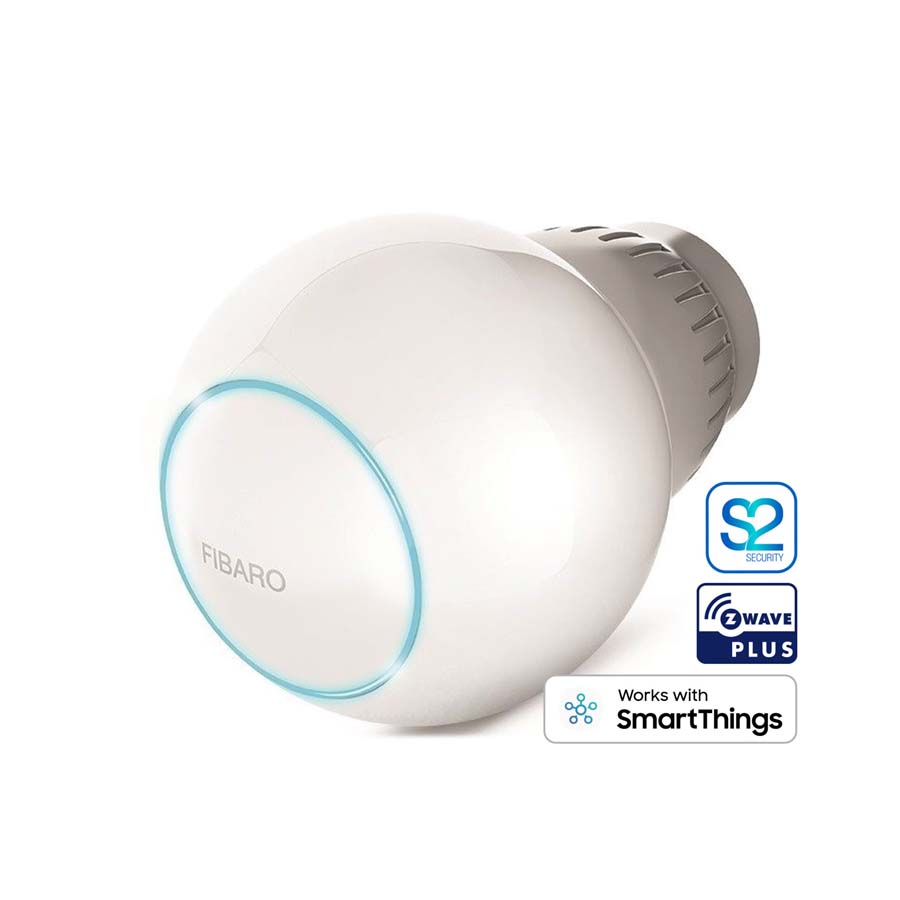

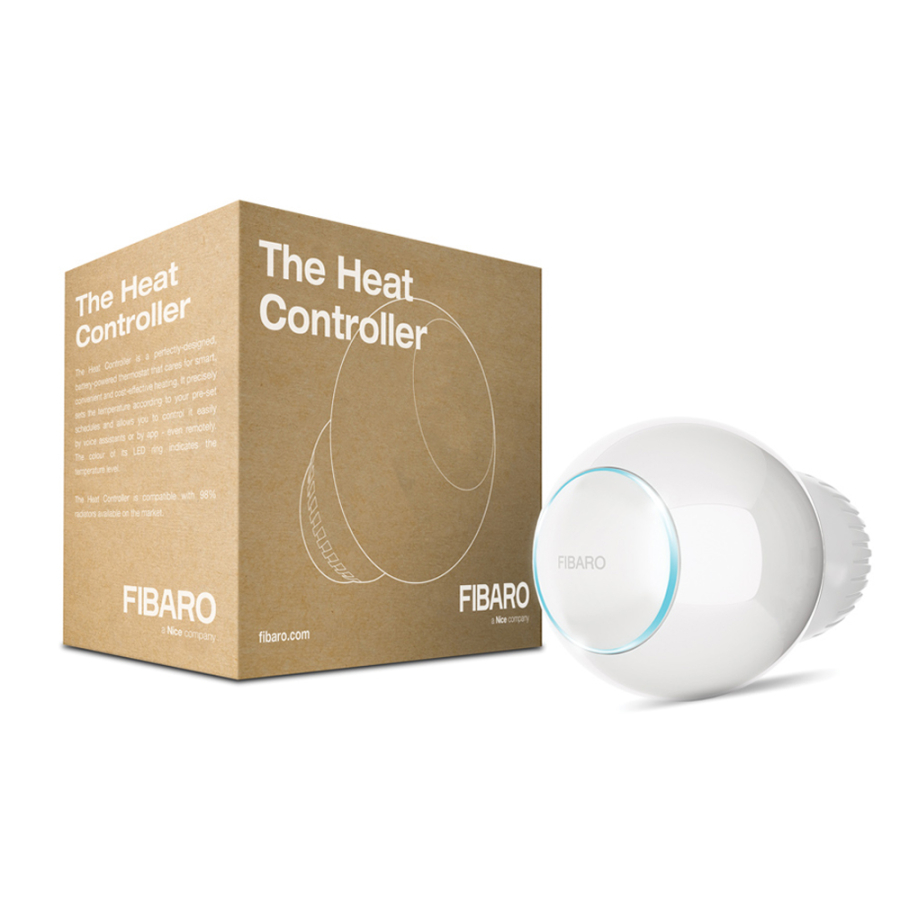

The FIBARO Heat Controller is a smart, elegant thermostatic valve for controlling the temperature of a radiator equipped with a thermostatic valve.
FIBARO The Heat Controller
The FIBARO Heat Controller is the intelligent and elegant thermostatic valve to control the temperature of a radiator with a thermostatic valve. The integrated temperature sensor automatically regulates the temperature to your desired level. Thanks to the included adapters, the Heat Controller is easy to install without extra tools on an existing radiator with a thermostatic valve. Via a smart home hub, you can easily create a convenient and energy-saving weekly schedule for each room. Furthermore, the Heat Controller contains smart features such as: open window detection, decalcification and frost protection.
The device has a built-in temperature sensor and can be connected to the separately available external temperature sensor for accurate temperature measurement. The FIBARO Heat Controller works with a rechargeable battery.
Features
- Communication with the FIBARO temperature sensor via BLE
- Visual colour display temperature setting
- Maximum water temperature 90°C
- External temperature sensor can be connected
- Automatic calibration function, frost protection and decalcification
- Open window function and operation protection
- Rechargeable battery and/or USB power supply*
- External temperature measurement*
*No external USB power supply included
For two-way temperature measurement, the external heat controller is required
Specifications:
| Communication and protocol: | Z-Wave |
|---|---|
| In accordance with guidelines: | RED 2014/53/EU RoHS 2011/65/EU |
| Maximum water temperature: | 90°C |
| Measurement accuracy: | 0.5°C (within 0-40°C range) |
| Operating temperature: | Temperature 0-40°C |
| Power source: | 3.7V Li-Poly battery pack |
| Protocol: | Z-Wave , Z-Wave (500 series chip) |
| Radio frequency: | 868.0-868.6 MHz 869.7-870.0 MHz 2402-2480 MHz |
| Supported battery charger: | micro-USB 5V, min. 0.5A |
| Supported radiator valves: | M30 x 1.5, Danfoss RTD-N, Danfoss RTD-N |
| Transmission power: | +6 dBm (Z-Wave) +7 dBm (BLE) |
