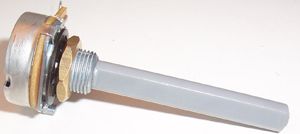

Potentiometer 4.7Kohm Linear
POT4K7L-350060-FAR

Potentiometer 4.7Kohm Linear

5,30 €
Only 3 in stock
SKU: POT4K7L-350060-FAR
Potentiometer 4.7Kohm Linear
  • Track Resistance:4.7kohm
  • Track Taper:Linear; No. of Turns:1
  • Resistance Tolerance:± 20%; Voltage Rating:500V
  • Series:23ESA
  • Power Rating:400mW
    •  Back to: Potentiometers

    Potentiometer 4.7 Kohm Linear

    Descrizione
    • POTENTIOMETER, LIN 4K7
    • Track Resistance:4.7kohm
    • Track Taper:Linear
    • No. of Turns:1
    • Resistance Tolerance:± 20%
    • Voltage Rating:500V
    • Series:23ESA
    • Power Rating:400mW
    • Potentiometer Mounting:Panel
    • Adjustment Type:Side
    • Body Diameter:20.4mm
    • External Length / Height:10.7mm
    • Full Power Rating Temperature:40°C
    • Mounting Type:Through Hole
    • Operating Temperature Max:70°C
    • Operating Temperature Min:-10°C
    • Operating Temperature Range:-10°C to +70°C
    • Panel Cutout Diameter:9.6mm
    • Proof Voltage:1000V
    • Resistance:4.7kohm
    • Resistor Element Material:Carbon
    • Rotation Electrical Angle:267°
    • Rotation Mechanical Angle:300°
    • Shaft Diameter:6.35mm
    • Shaft Length - Metric:50mm
    • Terminal Resistance:5ohm
    • Termination Type:Solder
    • Thread Size:7.4 M9.5
    • Tolerance +:20%
    • Tolerance -:20%
    • Voltage Rating VAC:500V
    • Voltage Rating VDC:500V
