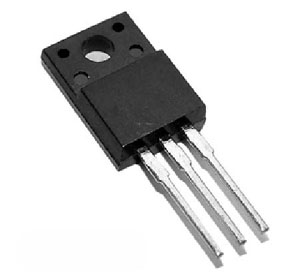

STP9NK60ZFP Mosfet
1,74 €
Only 8 in stock
SKU: STP9NK60ZFP-XAR
STP9NK60ZFP Mosfet
N-Ch, 600V-0.85ohms 7A
N-Ch, 600V-0.85ohms 7A
STP9NK60ZFP Mosfet
Descrizione:
- MOSFET, N, TO-220FP
- Polarità transistor: Canale N
- Continuous Drain Current Id: 7A
- Drain Source Voltage Vds: 600V
- On Resistance Rds(on): 950mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3.75V
- Power Dissipation Pd: 30W
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C
- Transistor Case Style: TO-220FP
- N. of Pins: 3
- MSL: -
- SVHC: No SVHC (20-Jun-2013)
- Avalanche Single Pulse Energy Eas: 235mJ
- Capacitance Ciss Typ: 1110pF
- Current Iar: 7A
- Current Id Max: 7A
- On State resistance @ Vgs = 10V: 950mohm
- Operating Temperature Range: Da -55°C a +150°C
- Pulse Current Idm: 28A
- Tipo terminazione: Foro passante
- Voltage Vds: 600V
- Voltage Vds Typ: 600V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4,5V
- Voltage Vgs th Min: 3V
