AEOTEC Door and Window Sensor 7

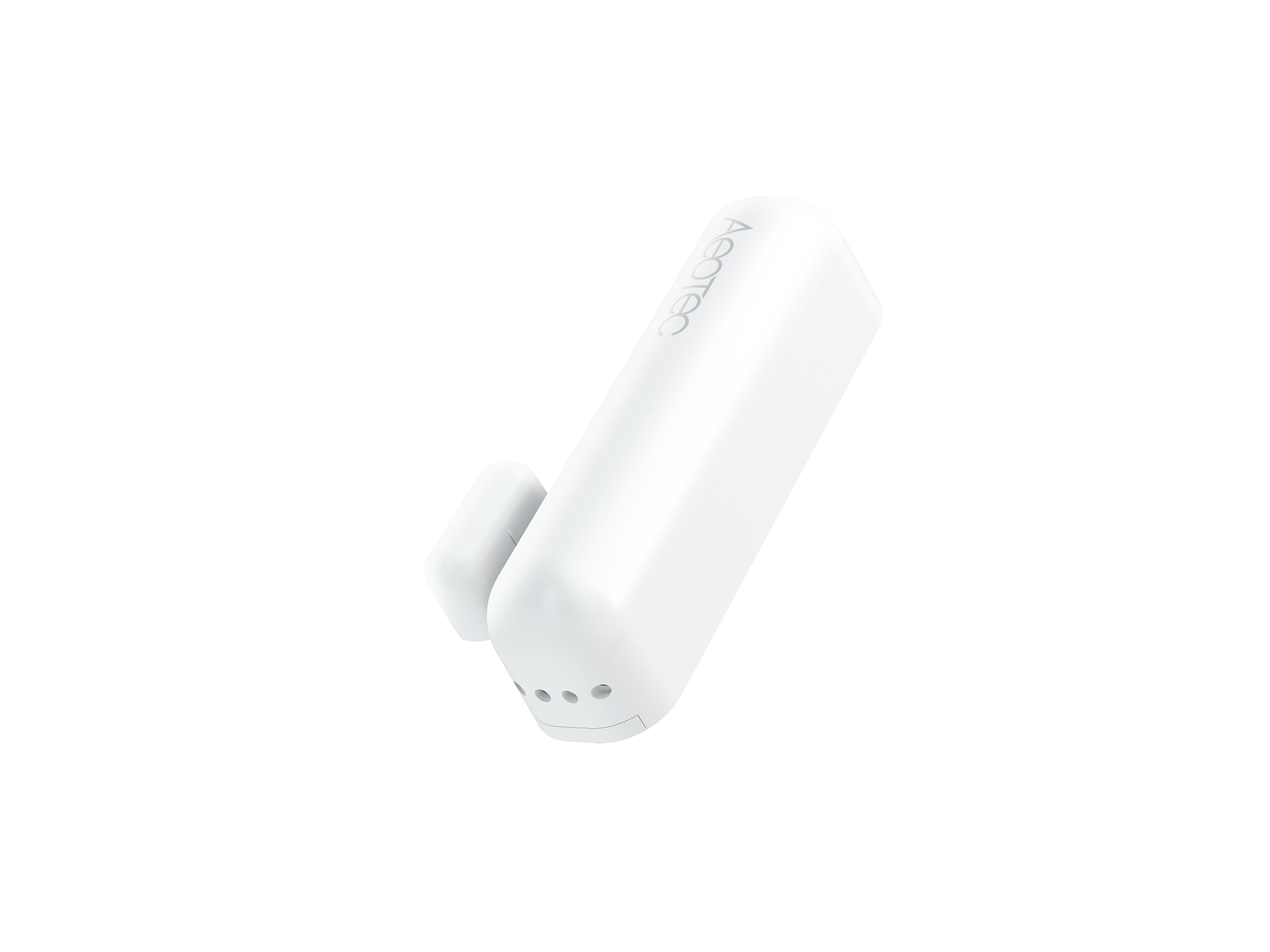

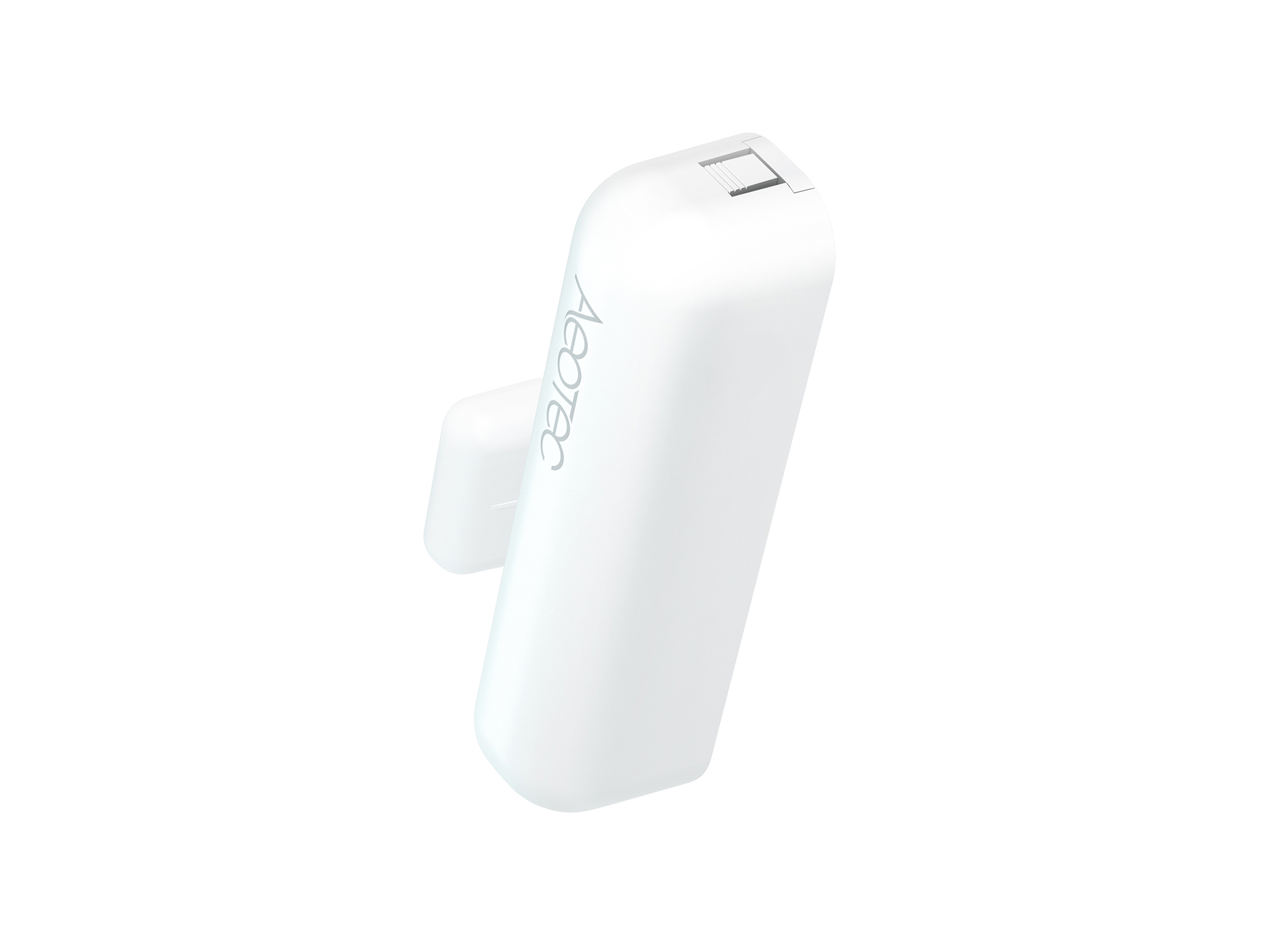

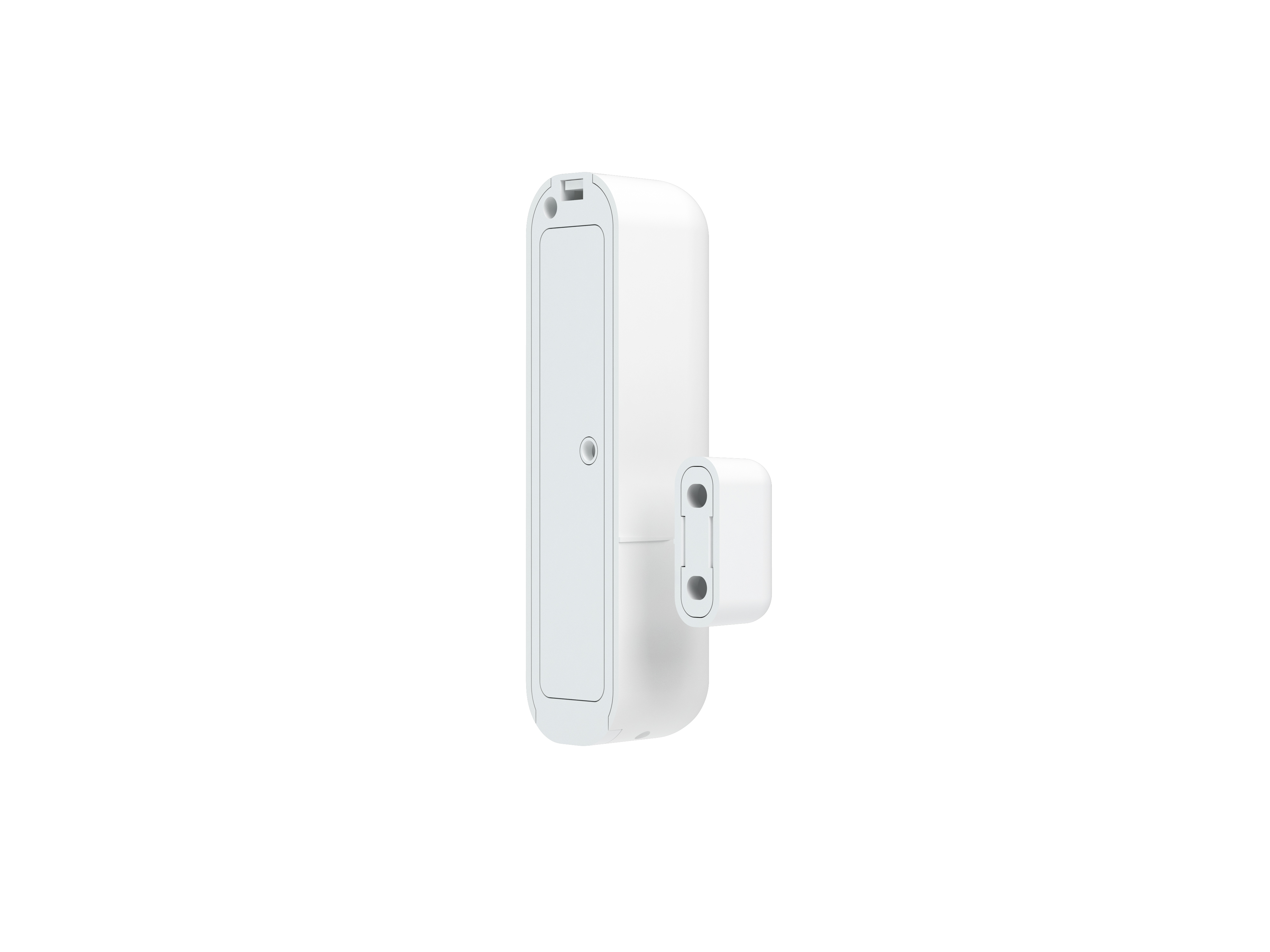

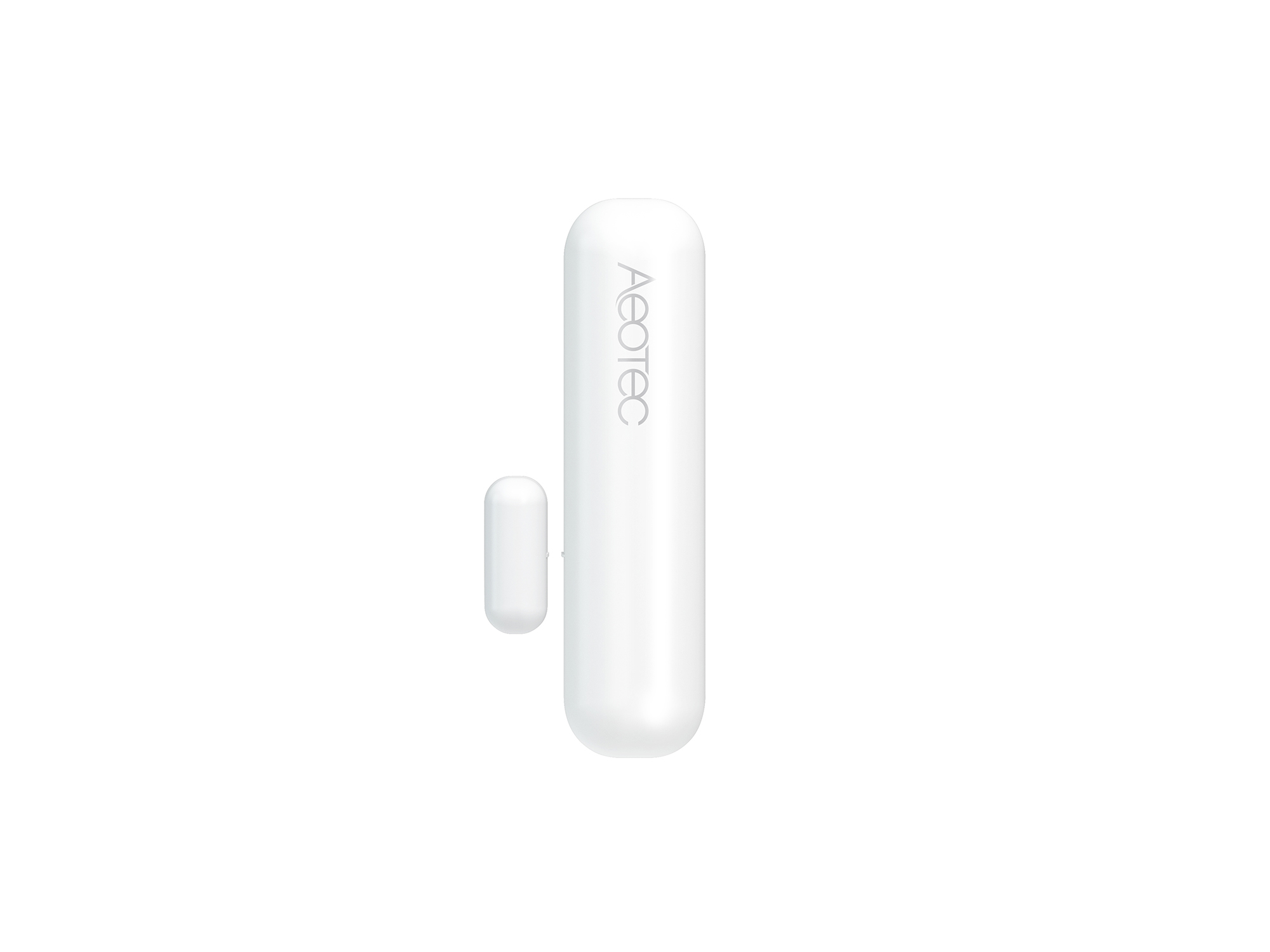

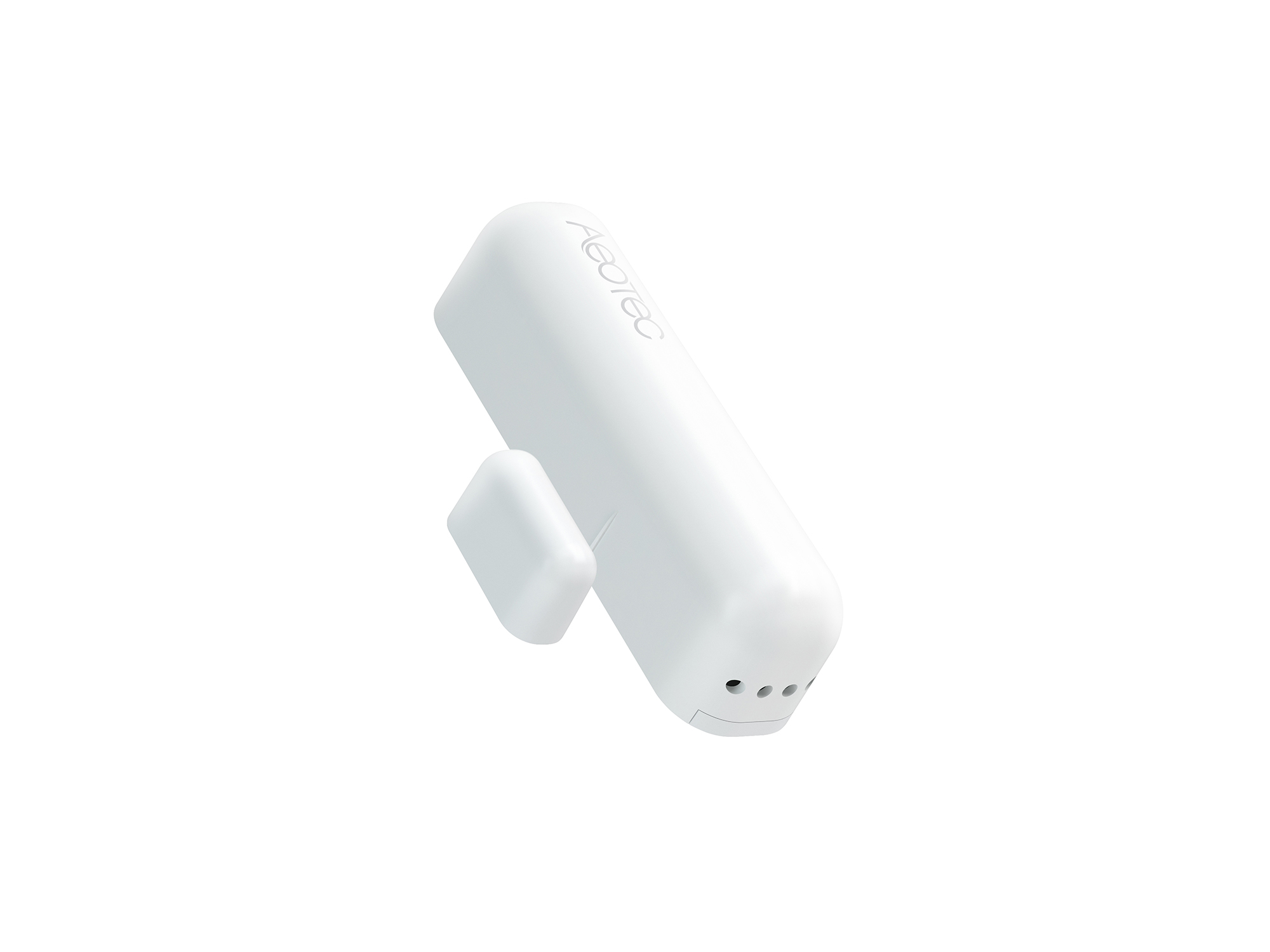

The Door / Window Sensor 7 is used to monitor contact between 2 objects and when it changes. Containing 2 sensor parts, it is typically installed on a door or window and the adjacent frame. When the door or window is opened or closed, a signal indicating that a change has occurred is sent to the connected Z-Wave gateway. Smart automation, safety, and security routines can be triggered from this signal.

Note that the difference between ZWA011 and ZWA008 is that ZWA011 is the 700 series while ZWA008 is the 500 series. In addition, ZWA011 is purely a contact closure sensor, and does not have a gyro sensor or dry contact input sensor like the ZWA008.

What makes it special.

1. Best-in-class size. 40% smaller than previous generations, including Door / Window Sensor Gen5.
2. Best battery life. Using a hardware and software configuration designed at our R&D facilities in Germany, Door / Window Sensor 7 uses up to 66% less battery power than previous generations.
3. Maximum wireless performance. Combining Z-Wave Plus and Z-Wave 700 series, Door / Window Sensor 7 offers the widest wireless distance range ever. US editions have a 150% greater wireless range, whilst EU and Asian editions have a 250% greater wireless range. Without using a power-hungry power amplifier, this state-of-the-art intelligence and security sensor can communicate device-to-device up to 100 metres / 328 feet, or can be retransmitted to over 400 metres / 1,312 feet.
4. Faster wireless performance. Best battery life and wireless performance are combined with the fastest wireless performance ever seen in an Aeotec sensor. The combination of 700 series and S2 in Door / Window Sensor 7 provides 50% faster wireless and response speeds compared to older sensors.

More information

Aeotec maintains the Door / Window Sensor 7 (ZWA011) User Guide  and setup information at that link.

Gateway compatibility, check  here aeotec.com/z-wave-gateways
