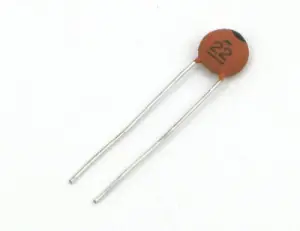

Ceramic capacitor 47pF 50V
Descrizione
- CAPACITOR, 47PF, 50V
- Capacitance: 47pF
- Capacitance Tolerance: ± 5%
- Dielectric Characteristic: C0G / NP0
- Voltage Rating: 50V
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 2.5mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- MSL: MSL 2 - 1 year
- Body Diameter: 5.5mm
- Capacitor Case Style: Disc
- Insulation Resistance: 10000Mohm
- Lead Diameter: 0.6mm
- Lead Length: 25mm
- No. of Pins: 2
- Operating Temperature Range: -25°C to +85°C
- Temperature Coeff. +: 60ppm/°C
- Temperature Coeff. -: -60ppm/°C
- Temperature Coefficient: ± 60ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 50V
