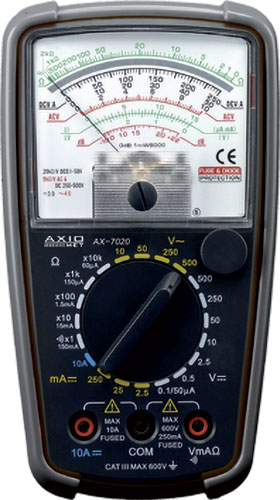

Axiomet AX-7020 5-function analogue tester
39,90 €
Only 2 in stock
SKU: AX-7020-MFAT
Analog Multimeter
Features: Universal
Tests: Diodes
Features: Universal
Tests: Diodes
Axiomet AX-7020 5-function analogue tester
Specifications:
Manufacturer | AXIOMET |
Meter type | analogue multimeter |
Measuring instrument features | universal |
DC voltage measuring range | 100mV/500mV/2.5V/10V/50V/250V/500V |
DC voltage measuring accuracy | ±3% |
AC voltage measuring range | 10V/50V/250V/500V |
AC voltage measuring accuracy | ±4% |
DC current measuring range | 50µA/2.5mA/25mA/250mA/10A |
DC current measuring accuracy | ±3% |
Ohmic resistance measuring accuracy | ±3% |
Test | diodes |
Circuit continuity test | acoustic signal, <100Ω |
Input impedance for DC voltage measurement | 20kΩ/V |
Input impedance for AC voltage | 9kΩ/V |
Measurement | AC voltage, AC current, DC voltage, DC current, dB, resistance |
Standard compliance | EN61010 600V CAT III |
Resistance measuring range | 2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
External dimensions | 95x46x168mm |
