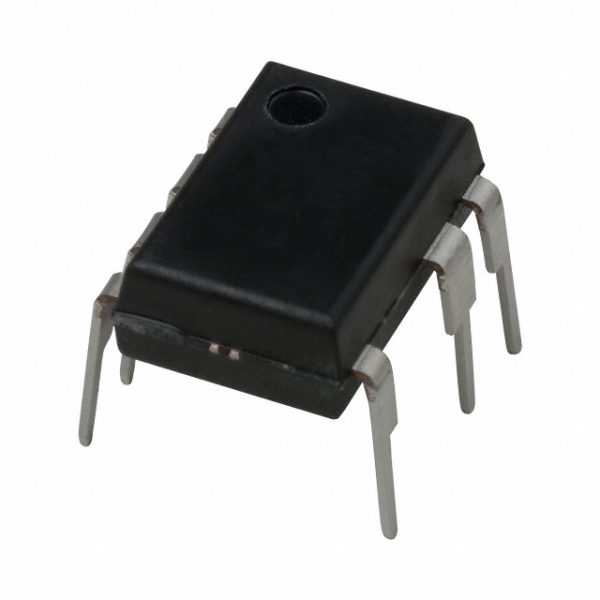

FSD210 Integrated Circuit

FSD210 IC

Green Mode Fairchild Power Switch (FPSTM)

Features

• Single Chip 700V Sense FET Power Switch
• Precision Fixed Operating Frequency (134kHz)
• Advanced Burst-Mode operation Consumes under 0.1W at 265Vac and no load (FSD210 only)
• Internal Start-up Switch and Soft Start
• Under Voltage Lock Out (UVLO) with Hysteresis
• Pulse by Pulse Current Limit
• Over Load Protection (OLP)
• Internal Thermal Shutdown Function (TSD)
• Auto-Restart Mode
• Frequency Modulation for EMI
• FSD200 does not require an auxiliary bias winding

Applications

• Charger & Adaptor for Mobile Phone, PDA & MP3
• Auxiliary Power for White Goods, PC, C-TV & Monitor
