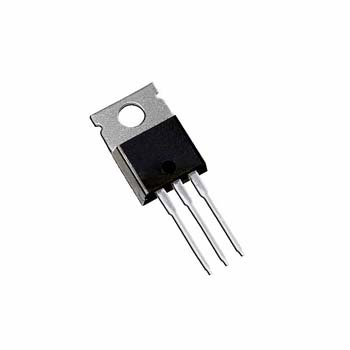

IRF540 Mosfet

IRF540 MOSFET

• MOSFET, N, TO-220
• Transistor Polarity:N
• Max Current Id:28A
• Max Voltage Vds:100V
• On State Resistance:0.052ohm
• Rds Measurement Voltage:10V
• Power Dissipation:107W
• Operating Temperature Range:-55ºC to +175ºC
• Transistor Case Style:TO-220
• No. of Pins:3
• SVHC:Cobalt dichloride
• Case Style:TO-220
• Cont Current Id:28A
• Current Temperature:25°C
• Device Marking:IRF540A
• External Length / Height:4.83mm
• External Width:10.67mm
• Full Power Rating Temperature:25°C
• Max On State Resistance:0.052ohm
• Max Voltage Vgs th:4V
• No. of Transistors:1
• Power Dissipation Pd:107W
• Pulse Current Idm:110A
• Termination Type:Through Hole
• Transistor Type:MOSFET
• Typ Voltage Vds:100V
• Typ Voltage Vgs th:4V
• Voltage Vgs Rds on Measurement:10V
• SVHC (Additional):Bis (2-ethyl(hexyl)phthalate) (DEHP)
