2N2907 Transistor

2N2907 Transistor

DESCRIPTION

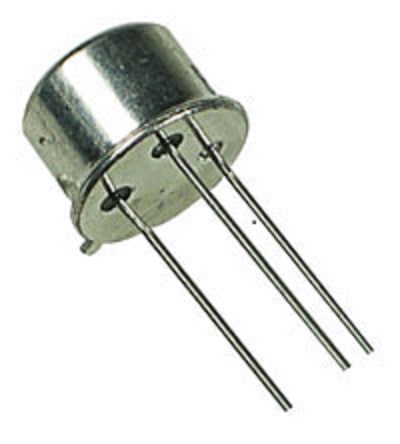

The 2N2905 and 2N2907 are silicon planar epitaxial PNP transistors in Jedec TO-39 (for 2N2905) and in Jedec TO-18 (for 2N2907) metal case. They are designed for high speed saturated switching and general purpose application.

Type Designator: 2N2907A
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.4 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.6 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 8 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TO18
