2SC2336 Transistor

2SC2336 Transistor

DESCRIPTION

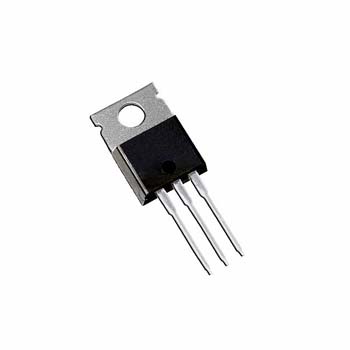

• With TO-220 package
• Complement to type 2SA1006, 2SA1006A, 2SA1006B

APPLICATIONS

• Audio frequency power amplifier
• High frequency power amplifier

CHARACTERISTICS

• Tj=25° unless otherwise specified
• SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
• VCE(sat) Collector-emitter saturation voltage IC=0.5A; IB=50mA 1.0 V
• VBE(sat) Base-emitter saturation voltage IC=0.5A ;IB=50mA 1.5 V
• ICBO Collector cut-off current VCB=150V; IE=0 1 μA
• IEBO Emitter cut-off current VEB=3V; IC=0 1 μA
• hFE-1 DC current gain IC=5mA ; VCE=5V 30
• hFE-2 DC current gain IC=150mA ; VCE=5V 60 320
• Cob Output capacitance IE=0 ; VCB=10V,f=1MHz 30 pF
• fT Transition frequency IC=100mA ; VCE=10V 95 MHz
