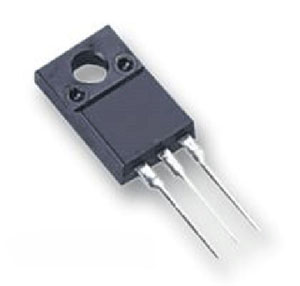

2SD1555 Transistor

2SD1555 Transistor

Type Designator: 2SD1555
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 50 W
   Maximum Collector-Base Voltage |Vcb|: 1500 V
   Maximum Collector-Emitter Voltage |Vce|: 600 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 3 MHz
   Collector Capacitance (Cc): 165 pF
   Forward Current Transfer Ratio (hFE), MIN: 8
   Noise Figure, dB: -
   Package: ISOWATT218

COLOR TV HORIZONTAL OUTPUT APPLICATIONS (Damper Diode BUILT IN)

• High Collector-Base Voltage(VCBO=1500V) 2-16E3A
• High Speed Switching
