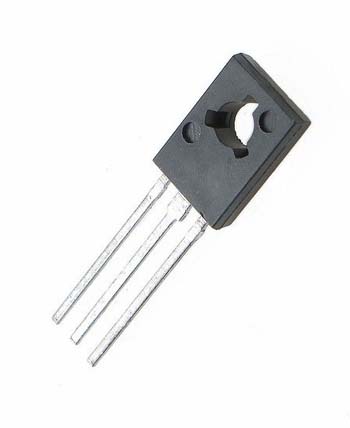

MJE800 Transistor

MJE800 Transistor darlington

 Type Designator: MJE800
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 40 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 4 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Forward Current Transfer Ratio (hFE), MIN: 750
   Noise Figure, dB: -
   Package: TO126

4.0 AMPERE DARLINGTON POWER TRANSISTORS COMPLEMENTARY SILICON 40 WATT 50
